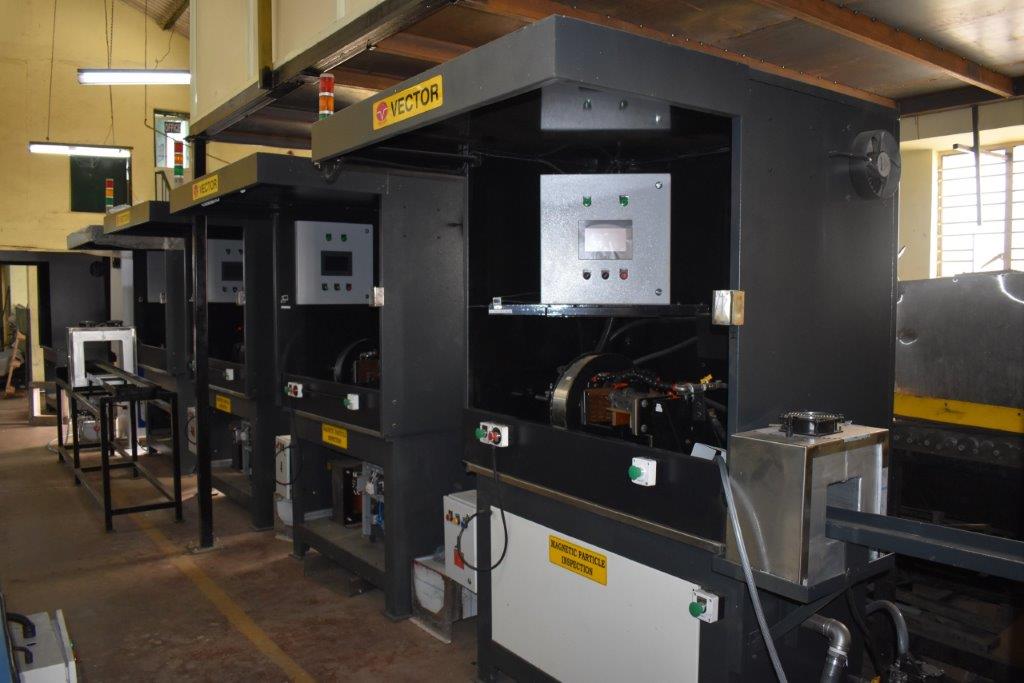

Standard MPI Machine

Bath Tank

  • SS 304, V-Tank of 40ltrs capacity, supported by MS frames.
  • Solenoid valve to integrate the bath application in auto cycle.
  • Necessary interconnecting pipes.
  • 1” Drain valve
  • Hand hose for manual spray.
  • Suitable for oil based and water based magnetic particles.
  • The tank is provided with a level indicator and a low level indicator audio / visual alarm

V-Series

Standard MPI Machine

Range - V2000, V3000, V4000 V5000

Technical Specifications

  • Machine is Suitable for Magnetizing, AC Current for checking Surface & FWDC for checking Subsurface defects only.
  • Input supply 415 V, 50 Hz, 3Phase (Input Current 250Amps)
  • Auto Bath Facility (Upto 600mm) & optional Manual Bath facility with Hand Spray & Hose pipe
  • Auto Combination Shot facility
  • Logics Controlled through PLC & HMI (Schneider make)
  • Integrated Power source with bench with solid-state controls
  • 5 Turn 300mm Diameter Coil 1No with sliding movement
  • Pneumatically Operated Head Stock & Tail Stock with mounting fixture
  • Machine will be provided with Separate Control Panel
  • Digital Current Reading Ammeter-2Nos for Contact and Coil Currents Readings with retention facility
  • Current Selection Potentiometers
  • Change over Selector Switch for AC/HWDC & CON/COIL
  • Fabricated frame with splashguard
  • Infinite Variable Thyristorized Current Control
  • Audio visual indication for Current Assurance
  • Emergency Stop
  • Interconnecting Cables and Hoses
  • Indication lamps and switches
  • FRL unit for Compressed Air
  • Current assurance indicator
  • Suitable for Oil Based and Water Based Magnetic Particles
  • Inbuilt Inspection Station Covered with MS Mild Steel powder coated with Exhaust Fan & White Light Assembly.
  • Safety interlocks like the Dual palm button for cycle ON, Over load of transformer, Oil level indicator & Low air pressure and No component.
